Figure 4.2.3.2

H. Jagodzinski^a and F. Frey^b

^aInstitut für Kristallographie und Mineralogie, Universität, Theresienstrasse 41, D-8000 München 2, Germany, and ^bInstitut für Kristallographie und Mineralogie, Universität, Theresienstrasse 41, D-8000 München 2, Germany

Figure 4.2.3.2

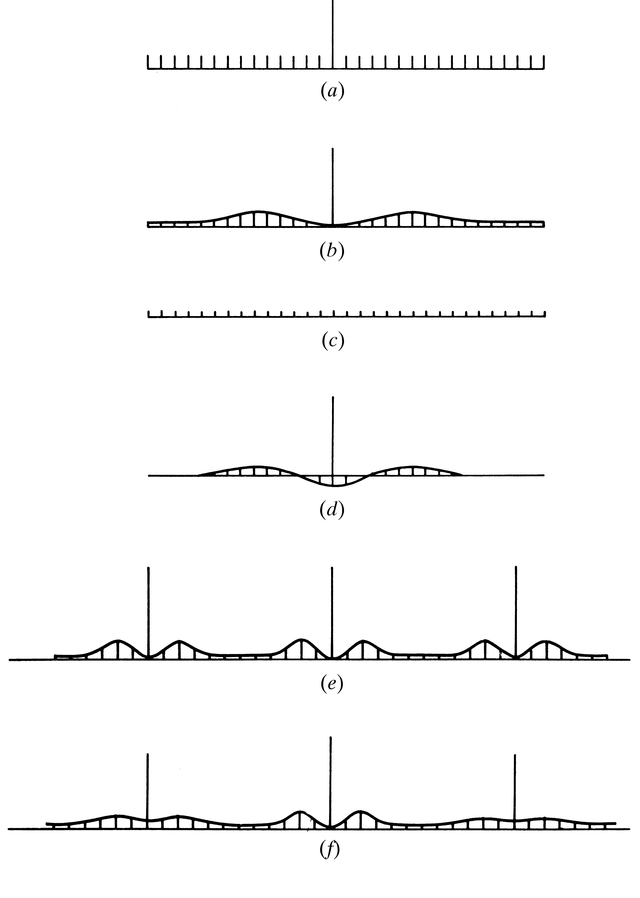

One-dimensional Patterson functions of various point-defect distributions: (a) random distribution; (b) influence of finite volume of defects on the distribution function; (c), (d) decomposition of (b) into a periodic (c) and a convergent (d) part; (e) Fourier transform of (c) + (d); (f) changes of (e), if the centres of the defects show major deviations from the origins of the lattice.
