Figure 2.2.1.3

J. R. Helliwell^a

^a Department of Chemistry, University of Manchester, Manchester M13 9PL, England

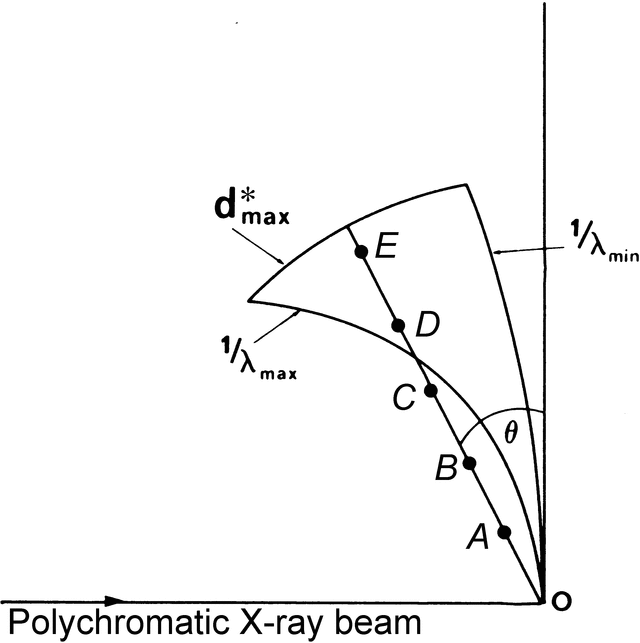

Figure 2.2.1.3

A multiple component spot in Laue geometry. A ray of multiplicity 5 is shown as an example. The inner point A corresponds to d and a wavelength λ, the next point, B, is d/2 and wavelength λ/2. The outer point E corresponds to d/5 and λ/5. Rotation of the sample will either exclude inner points (at the λ_max surface) or outer points (at the λ_min surface) and so determine the recorded multiplicity.
