International Tables for Crystallography (2006). Vol. C. ch. 2.3, p. 57

Figure 2.3.2.6

W. Parrish^a ^‡ and J. I. Langford^b

^a IBM Almaden Research Center, San Jose, CA, USA, and ^bSchool of Physics & Astronomy, University of Birmingham, Birmingham B15 2TT, England

Figure 2.3.2.6

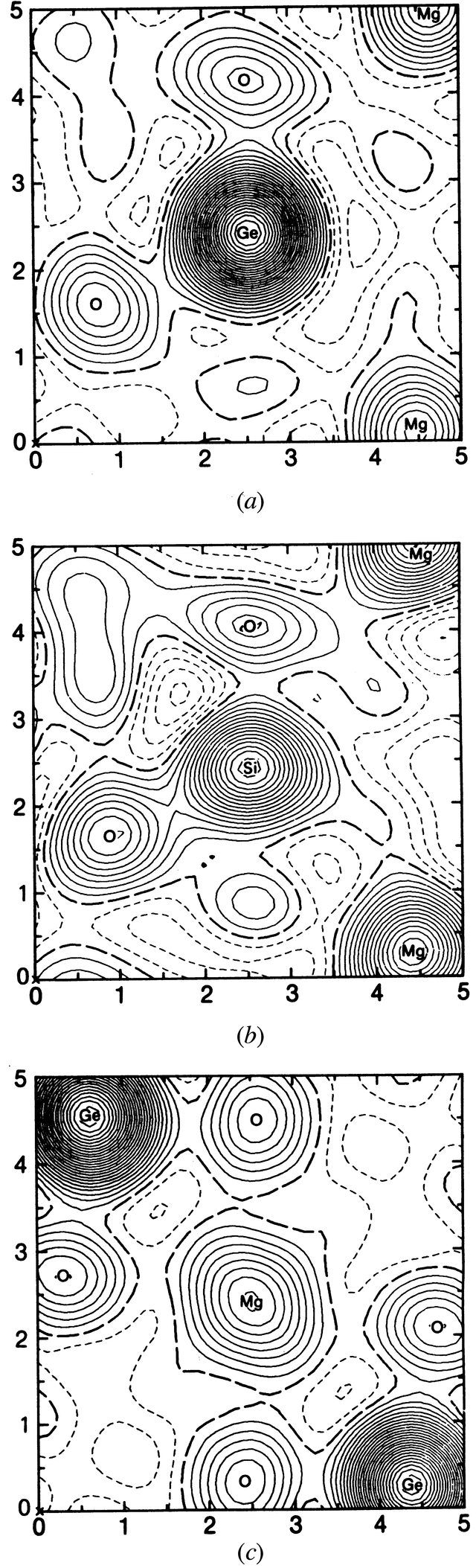

(a) and (c) Fourier maps of orthorhombic Mg₂GeO₄ calculated directly from profile-fitted synchrotron powder data. (b) Fourier section of isostructural Mg₂SiO₄ calculated from single-crystal data for comparison with (a).
