Figure 2.3.3.7

Parrish, W.; Langford, J. I.

doi:10.1107/97809553602060000578

International
Tables for
Crystallography
Volume C
Mathematical, physical and chemical tables
Edited by E. Prince

pdf | chapter contents | chapter index | related articles

International Tables for Crystallography (2006). Vol. C. ch. 2.3, p. 65

Figure 2.3.3.7

W. Parrish^a ^‡ and J. I. Langford^b

^a IBM Almaden Research Center, San Jose, CA, USA, and ^bSchool of Physics & Astronomy, University of Birmingham, Birmingham B15 2TT, England

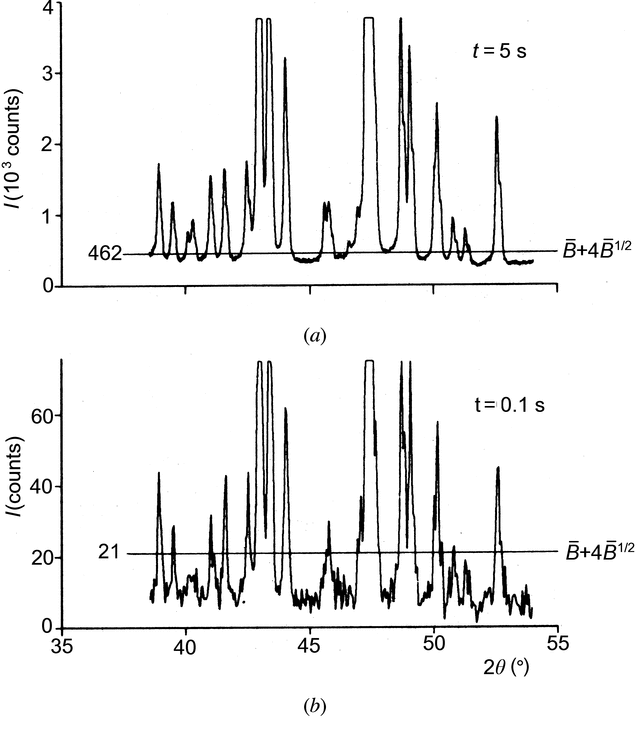

Figure 2.3.3.7

Effect of 4σ maximum peak height (horizontal line) on dropping weak peaks from inclusion in computer calculation. Step scan with (a) t = 5 s and (b) t = 0.1 s. Five-compound mixture, Cu Kα.
