International Tables for Crystallography (2006). Vol. C. ch. 4.2, p. 192

Figure 4.2.1.1

U. W. Arndta‡
[Figure 4.2.1.1]

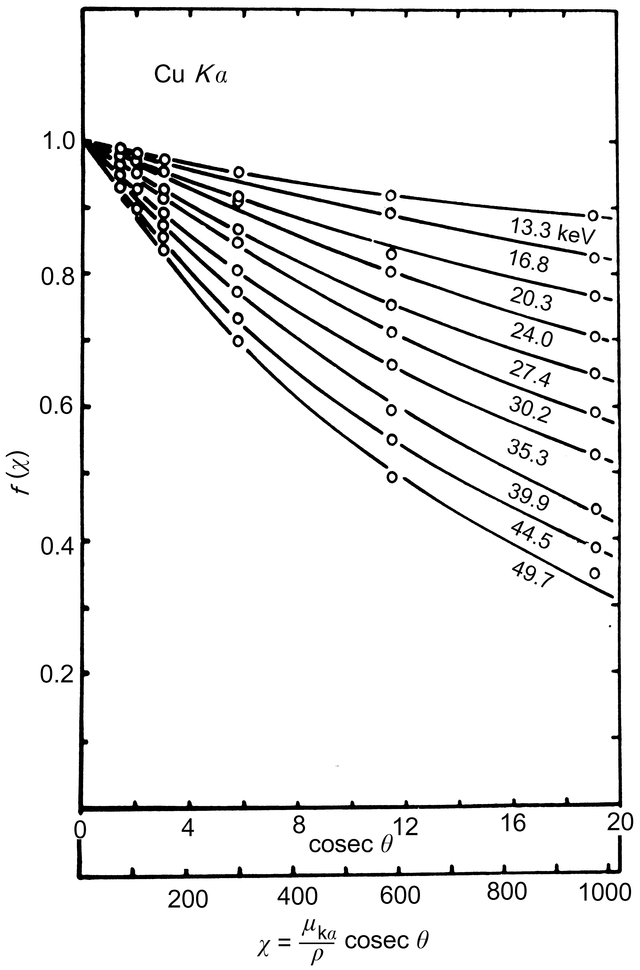

Figure 4.2.1.1

f (χ) curves for Cu K-L3 at a series of different accelerating voltages (in kV). From Green (1963[link]).
