International Tables for Crystallography (2006). Vol. C. ch. 4.2, p. 193

Figure 4.2.1.3

U. W. Arndta‡
[Figure 4.2.1.3]

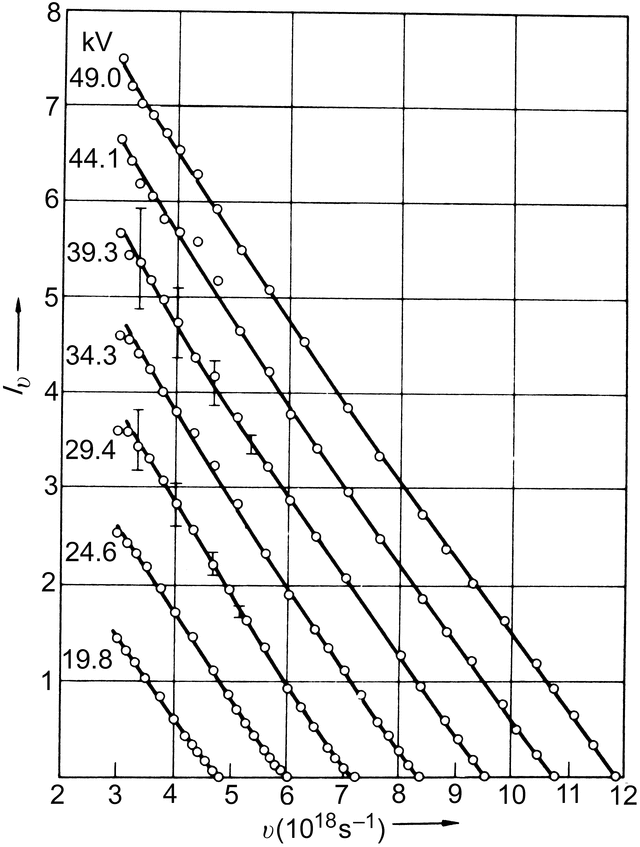

Figure 4.2.1.3

Intensity per unit frequency interval versus frequency in the continuous spectrum from a thick target at different accelerating voltages. From Kuhlenkampff & Schmidt (1943[link]).
