Figure 4.3.7.1

J. Gjønnes^e and J. W. Steeds^m

Figure 4.3.7.1

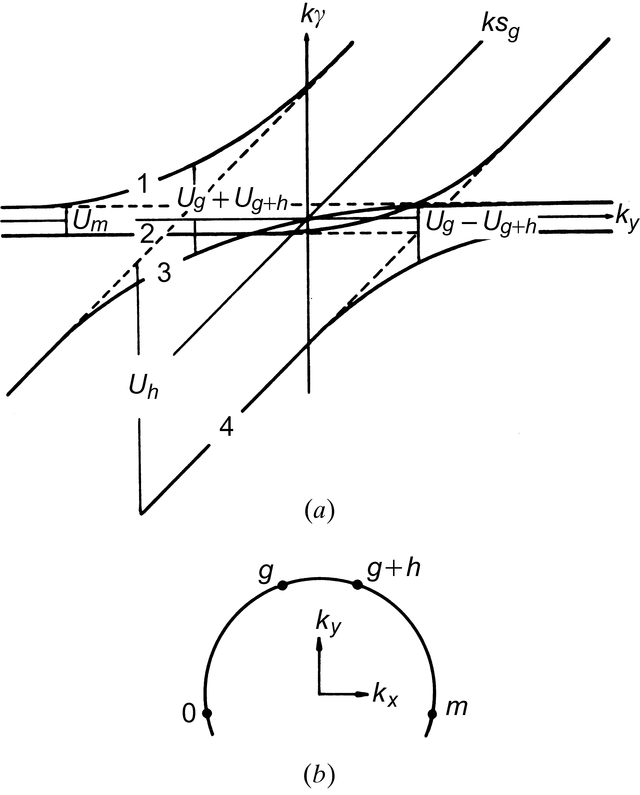

(a) Dispersion-surface section for the symmetric four-beam case (0, g, g + h, m), γk is a function of k_x, referred to (b), where k_x = k_y = 0 corresponds to the exact Bragg condition for all three reflections. The two gaps appear at s_g = ±(U_h − U_m)/k with widths (U_g ± U_{g + h})/k.
