International Tables for Crystallography (2006). Vol. C. ch. 4.4, p. 440

Figure 4.4.2.10

I. S. Anderson^a and O. Schärpf^f

Figure 4.4.2.10

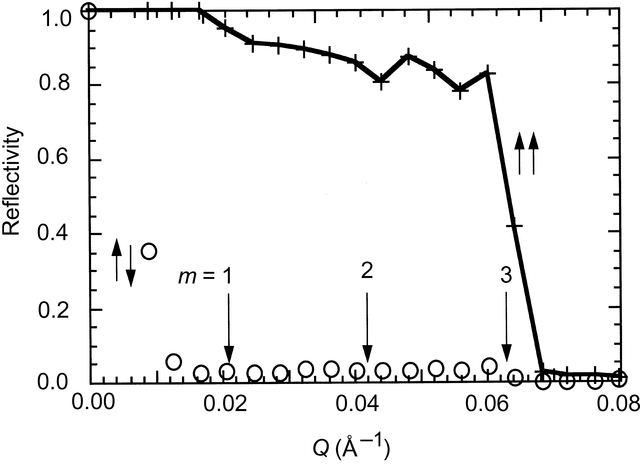

Measured reflectivity curve of an FeCoV/TiZr polarizing supermirror with an extended angular range of polarization of three times that of γ_c(Ni) for neutrons without spin flip, ↑↑, and with spin flip, ↑↓.
