Figure 7.1.8.2

Y. Amemiyaa and J. Chikawac
[Figure 7.1.8.2]
Figure 7.1.8.2

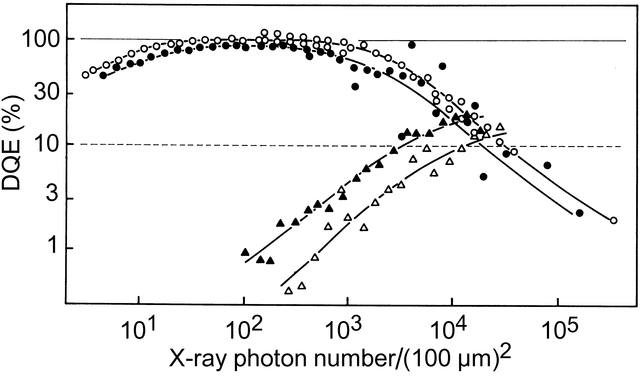

Measured detective quantum efficiency (DQE) of the imaging plate and high-sensitivity X-ray film as a function of the exposure level. The circles correspond to the imaging plate (with the FCR 101 read-out system, Fuji Film Co. Ltd), triangles to the X-ray film (Kodak DEF-5). The filled symbols are for 8.9 keV and open symbols for 17.4 keV. The solid line indicates a noiseless counter of 100% absorption efficiency (ideal detector). The dashed line indicates a noiseless counter of 10% absorption efficiency (Amemiya & Miyahara, 1988[link]).
