International Tables for Crystallography (2006). Vol. C. ch. 7.1, p. 636

Figure 7.1.8.3

Y. Amemiya^a and J. Chikawa^c

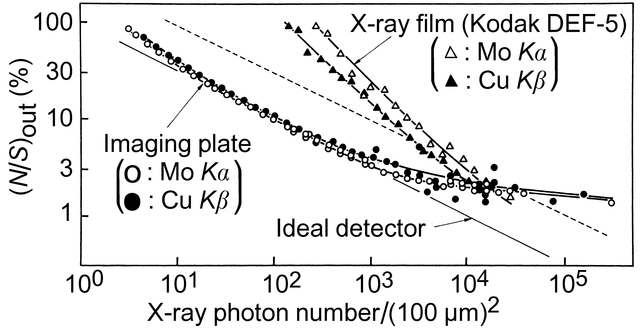

Figure 7.1.8.3

Fluctuation noise in the signal as a function of the exposure level. The circles correspond to the imaging plate and the triangles to the X-ray film (Kodak DEF-5). The filled symbols are for 8.9 keV and the open symbols for 17.4 keV. The dashed line indicates a noiseless counter of 10% absorption efficiency (Miyahara, Takahashi, Amemiya, Kamiya & Satow, 1986).
