Figure 7.1.8.6

Y. Amemiya^a and J. Chikawa^c

Figure 7.1.8.6

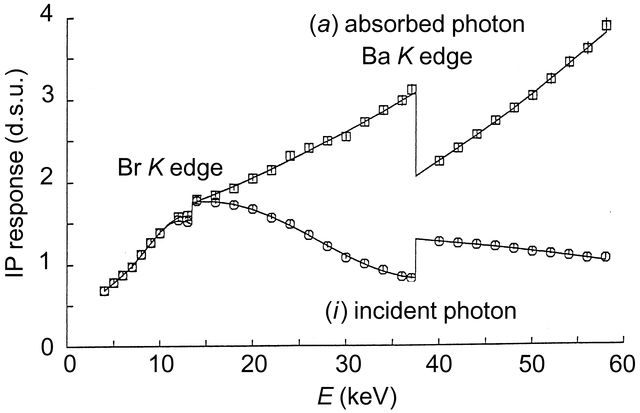

Dependence of the IP response as a function of the energy of an X-ray photon. (i) is the IP response per an incident X-ray photon, and (a) the IP response per absorbed X-ray photon. The unit of the ordinate corresponds to the background noise level of the IP scanner (Ito & Amemiya, 1991).
