Figure 9.2.2.15

S. Ďuroviča
[Figure 9.2.2.15]
Figure 9.2.2.15

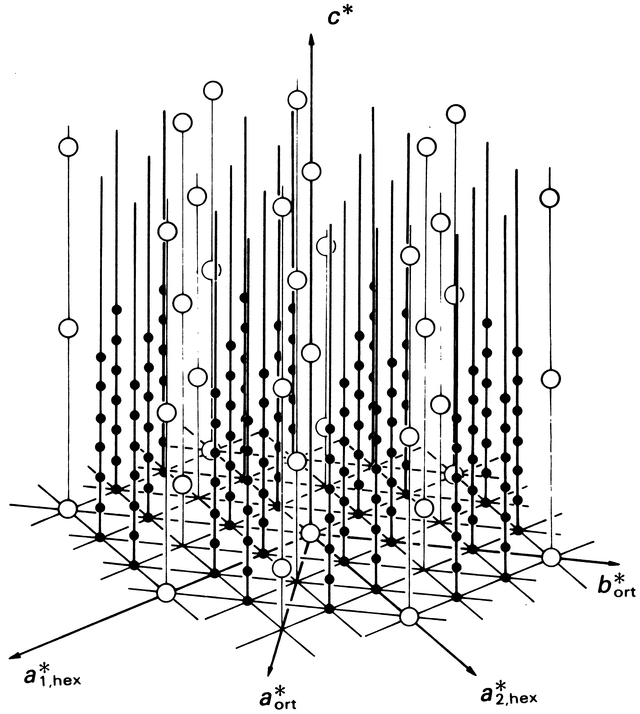

Clinographic projection of the general scheme of a single-crystal diffraction pattern of hydrous phyllosilicates. Family diffractions are indicated by open circles and correspond in this case to a rhombohedral superposition structure. Only the part with l ≥ 0 is shown.
