International Tables for Crystallography (2006). Vol. D. ch. 3.1, p. 359

Figure 3.1.3.2

V. Janovec^b ^* and V. Kopský^e

Figure 3.1.3.2

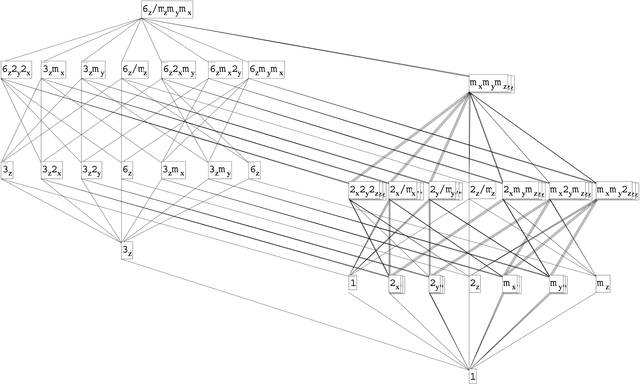

Lattice of subgroups of the group [6/mmm] . Conjugate subgroups are depicted as a pile of cards. In the software GI $[\star]$ KoBo-1, one can pull out individual conjugate subgroups by clicking on the pile. All conjugate subgroups are given explicitly in Table 3.4.2.7 .
