Figure 23.2.4.2

A. E. Hodel^a ^‡ and F. A. Quiocho^b

^aDepartment of Biochemistry, Emory University School of Medicine, Atlanta, GA 30322, USA, and ^bHoward Hughes Medical Institute and Department of Biochemistry, Baylor College of Medicine, One Baylor Plaza, Houston, TX 77030, USA

Figure 23.2.4.2

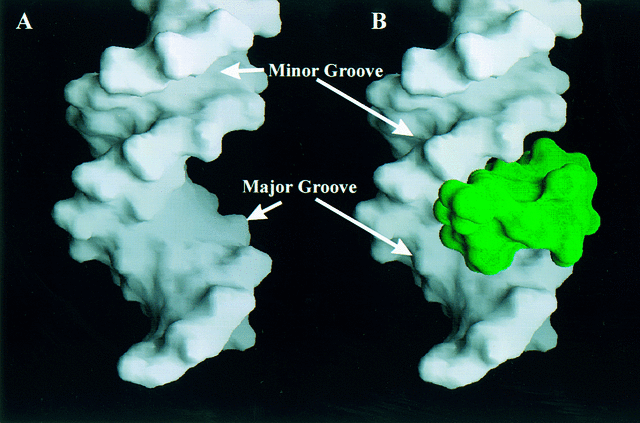

(a) A space-filling model of B-DNA showing the relative accessibility of the major and minor grooves. (b) A helix of the 434 repressor bound in the major groove of the helix, illustrating how the dimensions of a protein α-helix are compatible for reading the major groove of B-DNA (Shimon & Harrison, 1993).
