Figure 23.3.2.11

R. E. Dickerson^a ^*

^a Molecular Biology Institute, University of California, Los Angeles, Los Angeles, CA 90095–1570, USA
Correspondence e-mail: red@mbi.ucla.edu

Figure 23.3.2.11

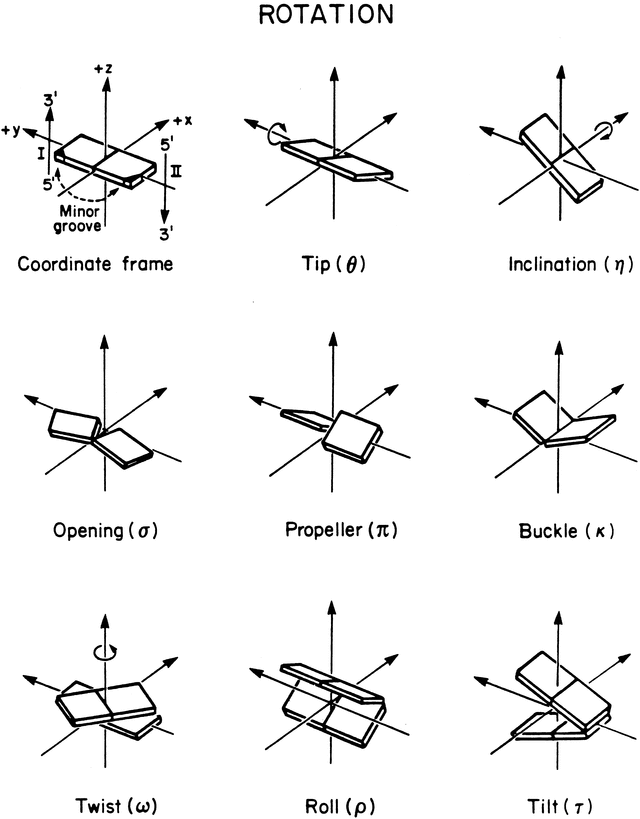

Local helix parameters involving rotations. Tip and inclination describe the orientation of a base pair relative to the helix axis, produced by rotation about the base-pair long axis or short axis, respectively. Opening, propeller and buckle describe rotations of the two bases of a pair relative to one another. Twist, roll and tilt describe changes of orientation from one base pair to the next, via rotations about the z, y and x axes, respectively.
