Figure 23.3.2.12

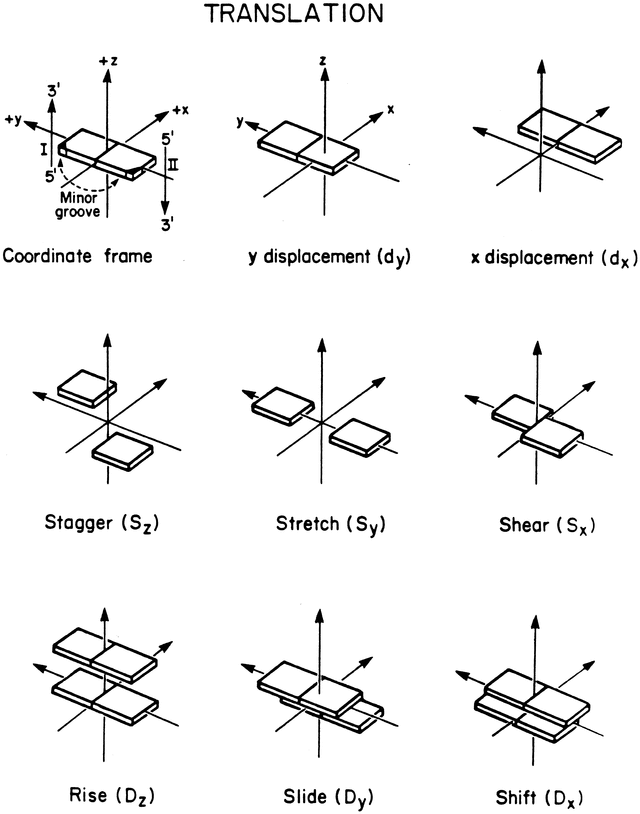

Local helix parameters involving translations. y and x displacements describe shifts of a lone base pair along its long or short axis, respectively. Stagger, stretch and shear describe displacements of the two bases of a pair relative to one another. Rise, slide and shift describe displacements from one base pair to the next, via translations along the z, y and x axes, respectively.
