Figure 23.3.2.6

R. E. Dickerson^a ^*

^a Molecular Biology Institute, University of California, Los Angeles, Los Angeles, CA 90095–1570, USA
Correspondence e-mail: red@mbi.ucla.edu

Figure 23.3.2.6

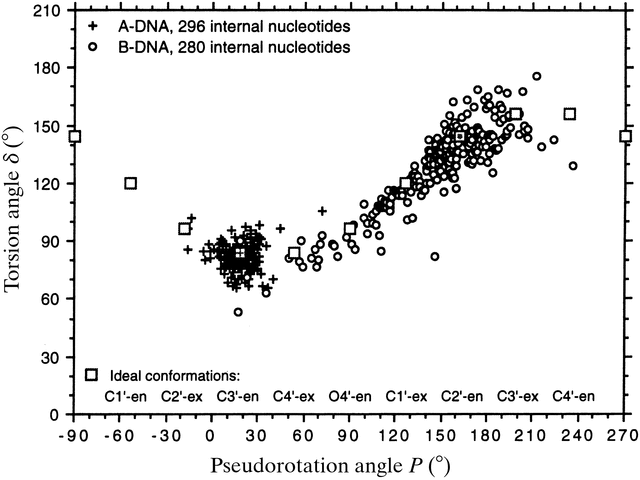

Plot of observed sugar conformations in 296 nucleotides of A-DNA (crosses) and 280 of B-DNA (open circles). Open squares mark ideal relationships between torsion angle δ (vertical axis) and pseudorotation angle P (horizontal axis) from the expression $[\delta = 40^{\circ}]$ $[\cos(P + 144^{\circ}) + 120^{\circ}]$ . Deviations from this ideal curve for real helices arise, because the amplitude of pseudorotation (or displacement of one atom from the mean plane of the others) varies from one ring to another. Note the tight clustering of A-DNA points around C3′-endo and the broader distribution of B-DNA conformations.
