Figure 23.3.3.4

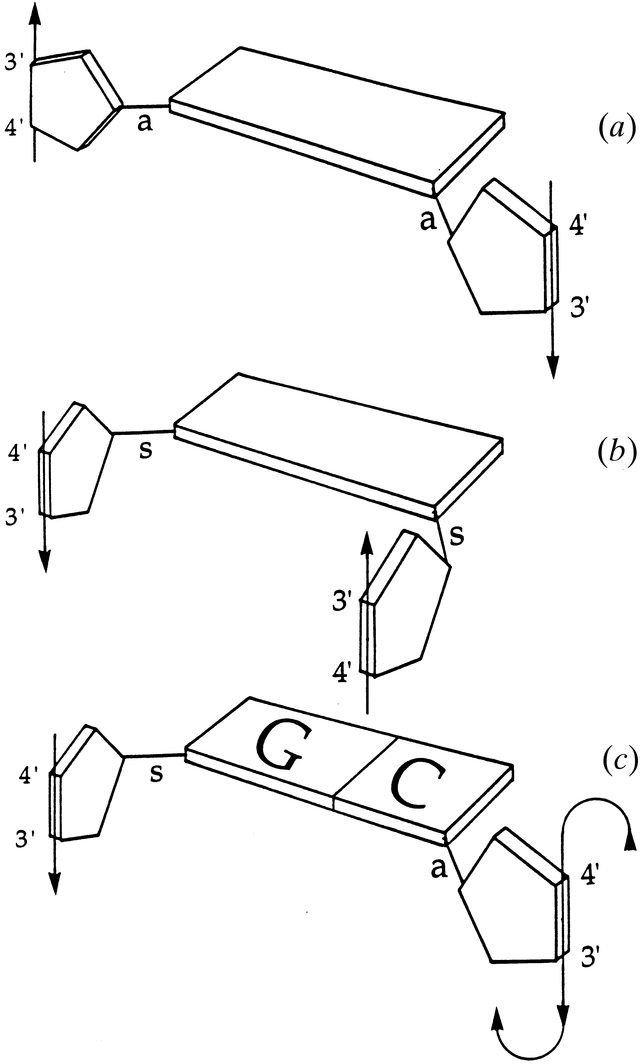

Glycosyl conformation and chain sense. (a) Glycosyl conformations anti/anti, backbone chains antiparallel, with clockwise sense when viewed into the minor groove, as here. This is typical for A- and B-DNA. (b) Glycosyl conformation syn/syn, backbone chains antiparallel, with counterclockwise sense viewed into minor groove. This is not known for any nucleic acid duplex. (c) Glycosyl conformation syn at G and anti at C, with the C4′—C3′ edge of the sugar pointing downward in both strands, which would seem to imply a parallel-stranded helix. However, in Z-DNA, antiparallel strands are achieved by a local reversal of chain direction at each C, as shown here. This produces the zigzag backbone pathway that is characteristic of the Z helix, visible in Fig. 23.3.3.3.
