Figure 23.3.4.6

R. E. Dickerson^a ^*

^a Molecular Biology Institute, University of California, Los Angeles, Los Angeles, CA 90095–1570, USA
Correspondence e-mail: red@mbi.ucla.edu

Figure 23.3.4.6

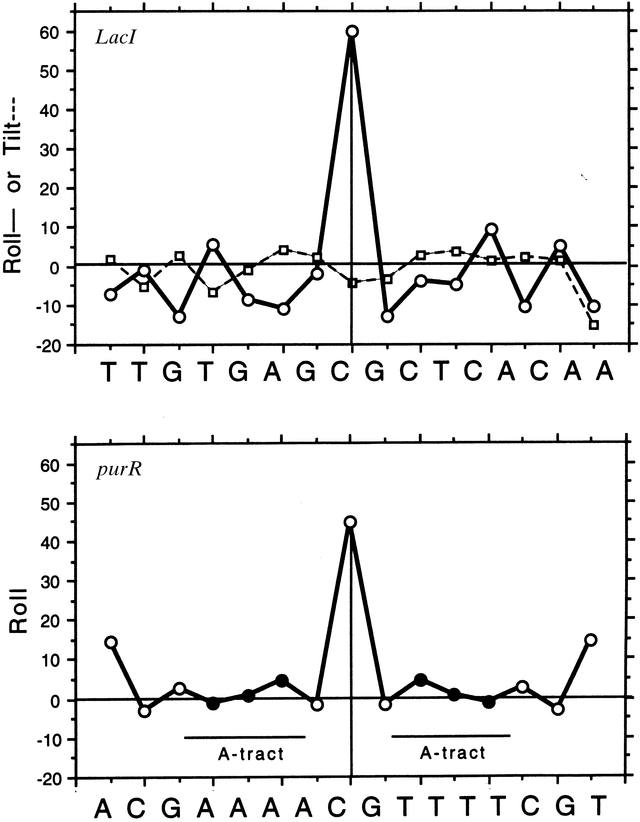

Roll-angle plots for sequence-specific DNA–protein complexes with lacI (top) and purR (bottom). In each case, bending occurs via localized roll at a C-G step. Other steps of the sequence have random rolls of ca 10° or less. Note that, as with IHF, A-tracts are especially straight and unbent. Dashed lines in the lacI plot demonstrate the unimportance of tilt in production of helix bending.
