Figure 23.3.4.7

R. E. Dickerson^a ^*

^a Molecular Biology Institute, University of California, Los Angeles, Los Angeles, CA 90095–1570, USA
Correspondence e-mail: red@mbi.ucla.edu

Figure 23.3.4.7

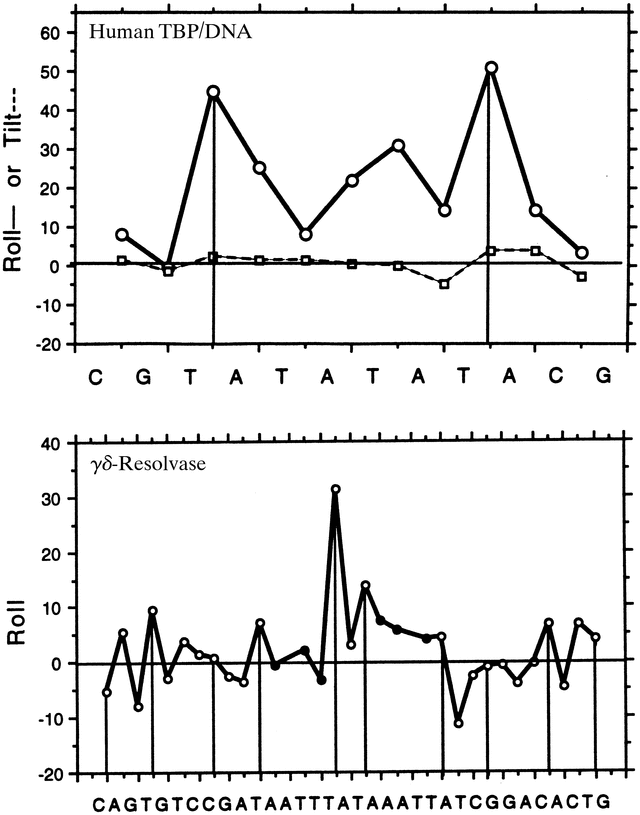

Bending via roll at T-A steps in TBP or the TATA-binding protein (top) and in γδ-resolvase (bottom). Note that not every T-A step in TBP or γδ-resolvase is necessarily bent. Note also in γδ-resolvase that C-A = T-G steps, which in proteins such as CAP are used to generate sharp roll bends, here, frequently, are local roll maxima, even though they contribute little to the overall bending. They have a bending potential that is not used in this particular setting.
