Figure 23.4.3.1

C. Mattosa* and D. Ringeb

aDepartment of Molecular and Structural Biochemistry, North Carolina State University, 128 Polk Hall, Raleigh, NC 02795, USA, and  bRosenstiel Basic Medical Sciences Research Center, Brandeis University, 415 South St, Waltham, MA 02254, USA
Correspondence e-mail:  mattos@bchserver.bch.ncsu.edu

[Figure 23.4.3.1]
Figure 23.4.3.1

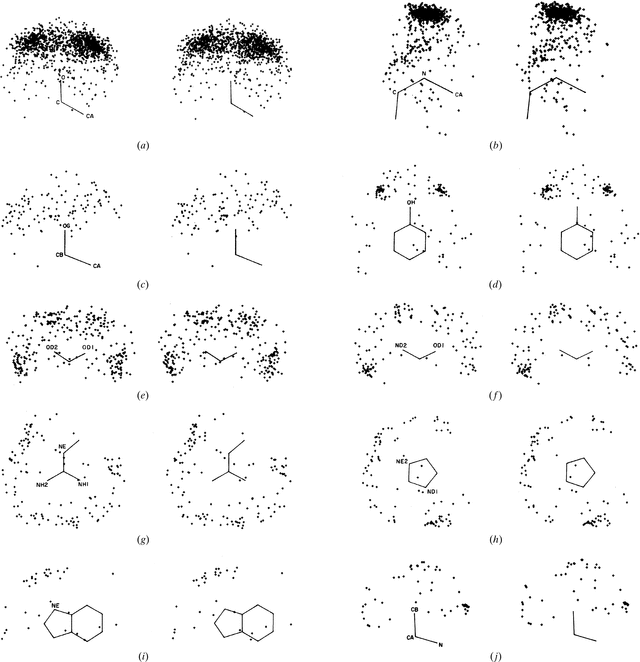

Distribution of water-molecule sites in stereo around: (a) main-chain O, (b) main-chain N, (c) Ser OG, (d) Tyr ring, (e) Asp OD1 and OD2, (f) Asn OD1 and ND2, (g) Arg NH1, NH2 and NE, (h) His ring to 3.5 Å, (i) Trp ring to 3.5 Å, (j) Ala CB. Reprinted with permission from Thanki et al. (1988)[link]. Copyright (1988) Academic Press.
