Figure 6.1.2.3

U. W. Arndt^a ^‡

^a Laboratory of Molecular Biology, Medical Research Council, Hills Road, Cambridge CB2 2QH, England

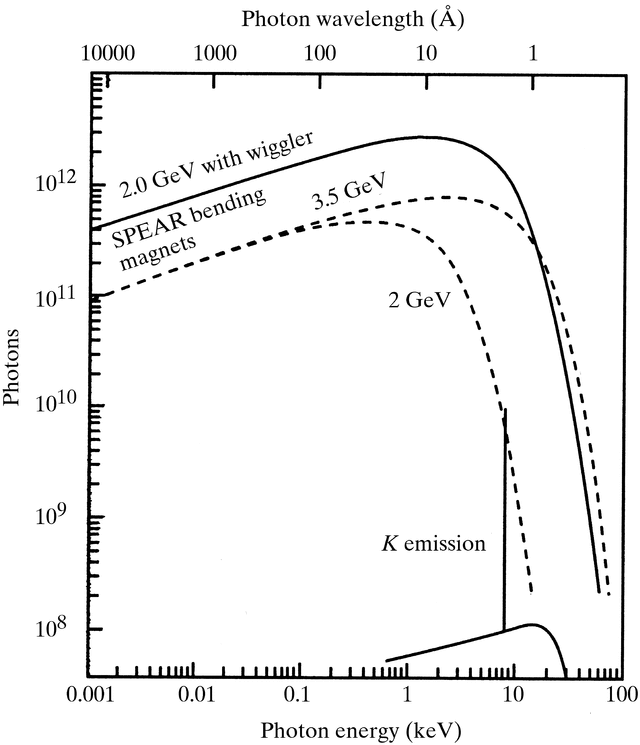

Figure 6.1.2.3

Comparison of the spectra from the storage ring SPEAR in photons s⁻¹ mA⁻¹ mrad⁻¹ per 1% band pass (1978 performance) and a rotating-anode X-ray generator, showing the Cu K emission line and the Bremsstrahlung. Reproduced with permission from Nagel (1980). Copyright (1980) New York Academy of Sciences.
