![[Figure]](fig3.6.7.15.gif)
|

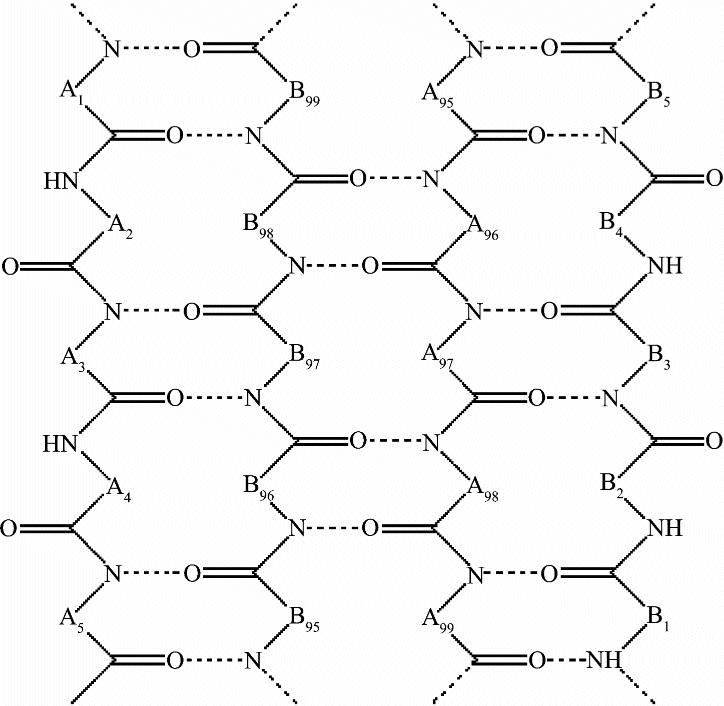

Fig. 3.6.7.15. A hypothetical
![[beta]](../../graphics/beta_rmgif.gif) -sheet to be
described with data items in the STRUCT_SHEET, STRUCT_SHEET_ORDER,
STRUCT_SHEET_RANGE and STRUCT_SHEET_HBOND categories. Note that
the strands come from two different polypeptides, labelled A and B.
|
